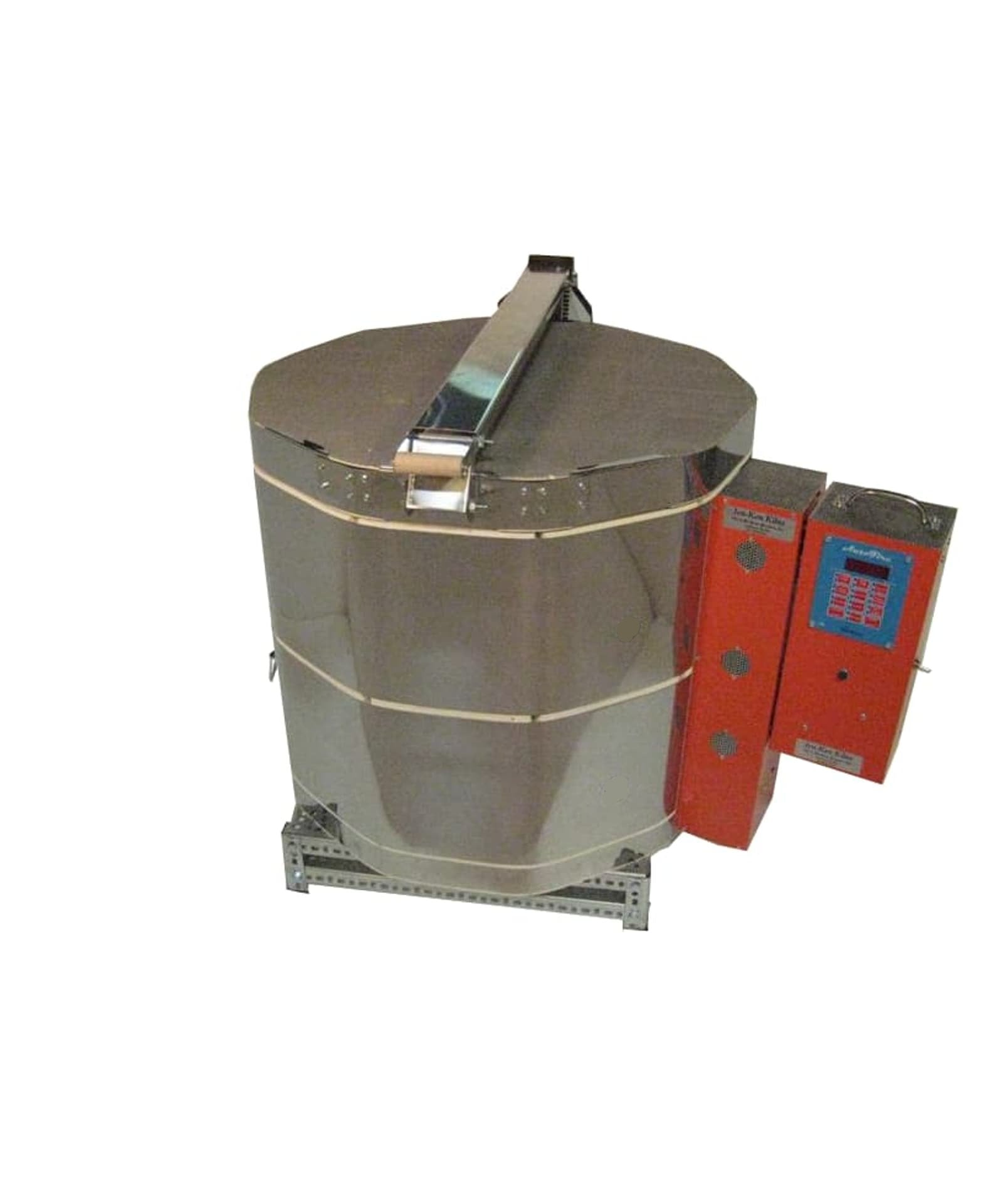

AF Mega Coil 2422 3" Ceramic/Pottery Kiln with Lid Lifters

AF Mega Coil 2422 3" Ceramic/Pottery Kiln with Lid Lifters

Regular price $4,231.00 USD
Regular price Sale price $4,231.00 USD
Sale Sold out
Shipping calculated at checkout.

Ceramics & Pottery

View full details

Mega Coil 2422 3" with Lid Lifters

PRODUCT DESCRIPTION

ABOUT

The Jen-Ken Mega Coil Kiln Line for pottery and ceramics can do it all! Designed with the busy production studio or artist in mind, these Mega Coil kilns offer unmatched ease of operation and maintenance. Our innovation starts with enhancing our traditional 3" Brick Kiln by adding one super heavy-gauge Mega Coil to each full brick.

In just about 10 minutes, you can effortlessly change a coil on your own, keeping your creative process uninterrupted. This design ensures minimal downtime – no waiting for repairmen! Plus, if there's ever a controller issue that can’t be resolved immediately, you can simply package it up and send it back to the Jen-Ken factory for expert servicing.

Equipped with the renowned Orton AutoFire 4000 12-Button Controller (wall-mountable) with 25 blank user programs as standard, precise temperature control ensures optimal firing conditions for every project. With the option to upgrade to the AutoFire Slide or the TAP II Touchscreen Controller, you’ll gain even more features and ease of programming.

KEY FEATURES

  • Best for ceramics and pottery
  • 4 easy-to-change, oversized super heavy gauge Mega Coils
  • Larger coil diameter and increased element material extend kiln firing life by 10 to 15 years compared to similarly-sized kilns on the market
  • Wall-mount enclosure for controller, away from heat to safeguard internal components
  • Full cone firing settings with slow, medium, and fast firing options
  • 10 user programs for custom firing schedules
  • 8-gauge thermocouple for accurate temperature monitoring
  • Internal wiring with 12 color-coded element tails that easily uncouple for stress-free replacement

WHAT'S INCLUDED

  • Orton AutoFire 4000 12-Key Controller
  • Lid Lifters
  • Kiln Stand
  • Solid State Relays
  • Instruction Manual
  • 2-Year Limited Warranty for Kiln and Controller

HELPFUL HINTS

Coming soon!

WARRANTY

2-year limited warranty for kiln and controller included.

BEFORE YOU PURCHASE

Before purchasing any Jen-Ken Kiln, we recommend that you give us a call at (800) 329-KILN to discuss your unique needs, studio setup, and electric requirements, ensuring you order the right kiln with confidence.

PRODUCT SPECIFICATIONS

PRODUCT SPECIFICATIONS

Kiln Model AF 2422 Mega Coil 3" Kiln
Interior Dimensions 24” x 22”
Cubic Feet 5.76ft³
Top/Side Firing Side
Max Temp 2,300°F
Voltage 240V
Amperage 36A
Wattage 8,640W
Receptacle 6-50R
Breaker 40A
Circuit Wire Gauge 8
Overall Dimensions (Footprint and Height of Kiln Body) 30” x 28”
Kiln Weight 275 lbs
Shipping Weight (Average) 350 lbs
Shipping Method Motor Freight - Call for Quote
