Orton AutoFire® 3-Button Remote Controller (AF4X)

Orton AutoFire® 3-Button Remote Controller (AF4X)

Regular price $550.00 USD
Regular price Sale price $550.00 USD
Sale Sold out
Shipping calculated at checkout.

Preprogrammed for with glass, PMC, and cone-firing schedules, 25 user settings, and safety relay. Select voltage, amperage, and relay type to see pricing.

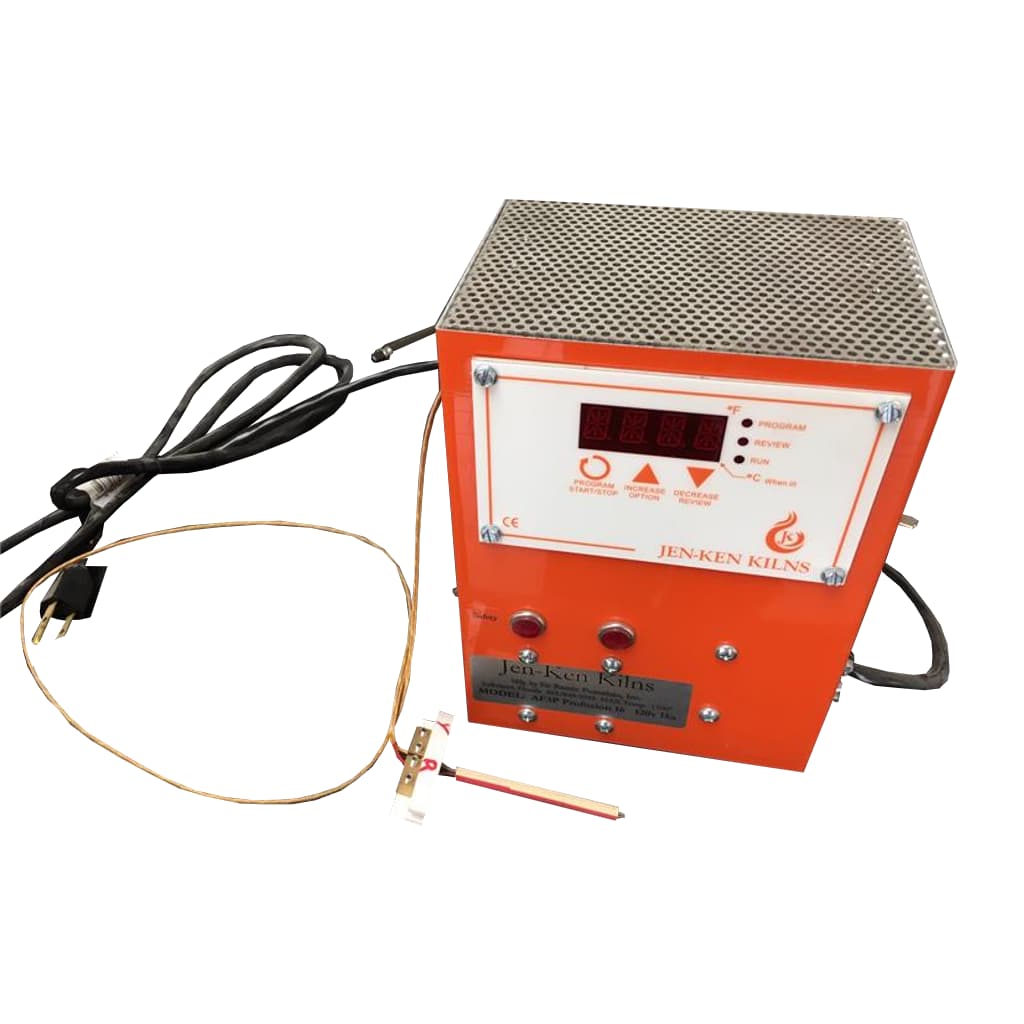

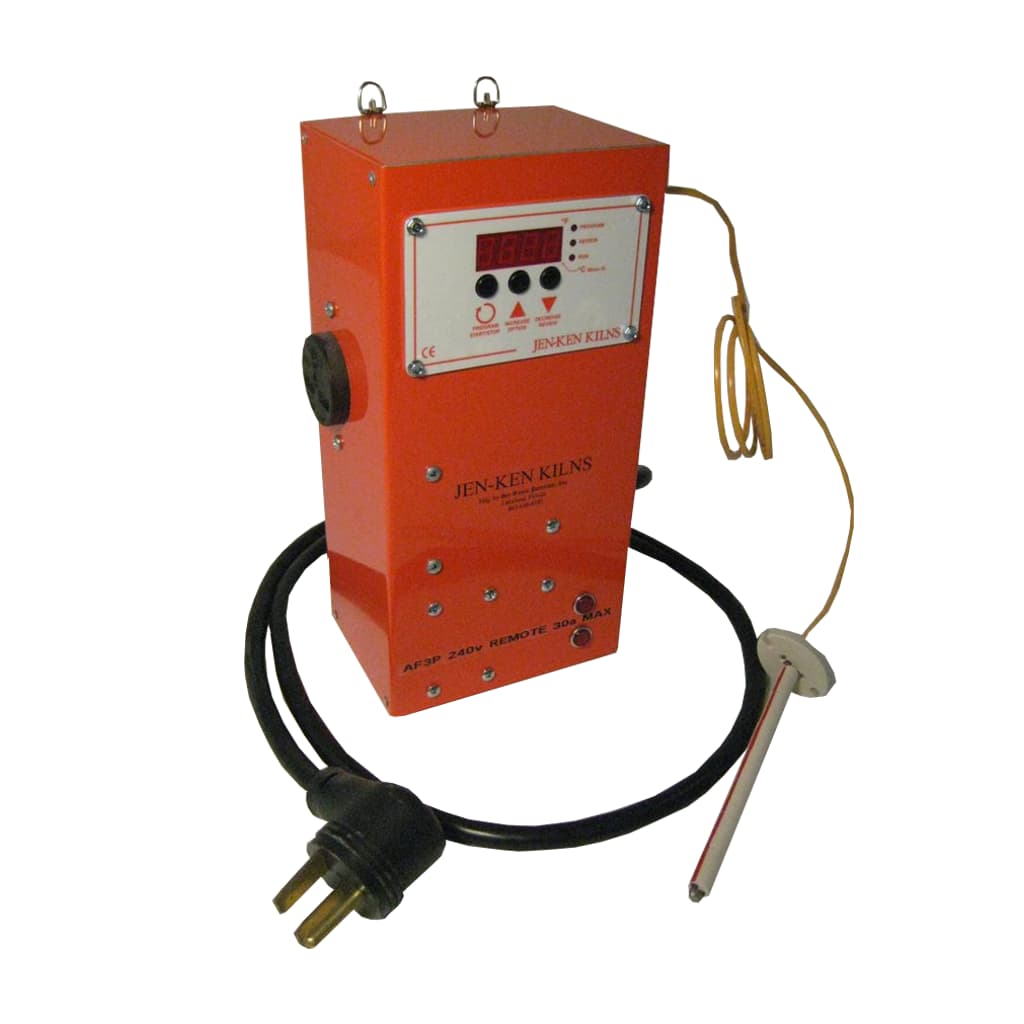

📸: Images show the  AF3P (AF4X) 240V / 30A and for 120V / 15A kiln models.

View full details

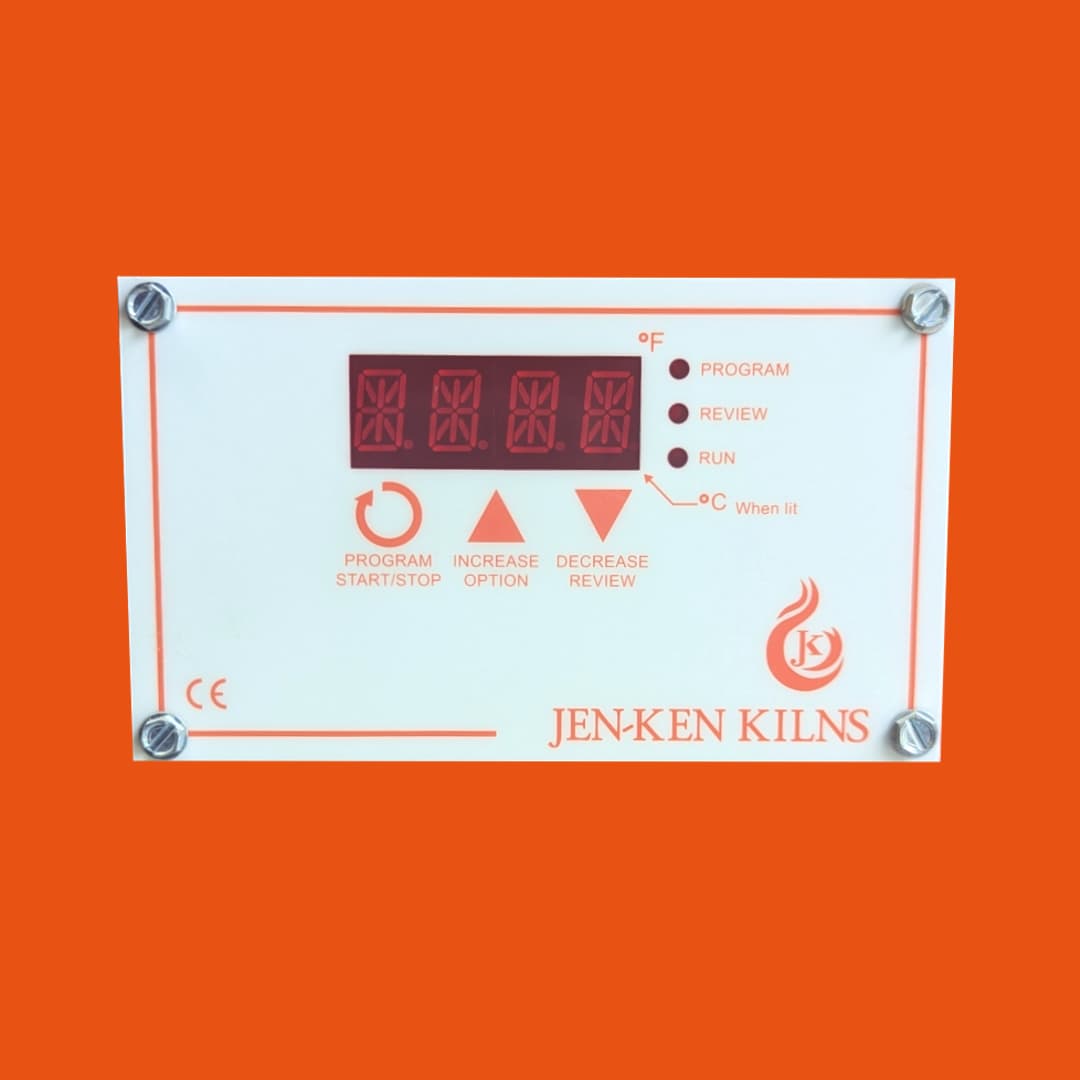

AutoFire® 3-Button Remote Controller (AF4X)

PRODUCT DESCRIPTION

ABOUT

Are you tired of constantly monitoring your kiln? Wish you could enjoy the convenience of digital controls without buying a new kiln? Now you can!

With our REMOTE system, you can effortlessly convert your manual kiln into a digital one. Simply plug your kiln into the controller, connect the controller to the wall, and place the included thermocouple through a hole in the kiln to read the temperature.

This controller comes preloaded with firing schedules for glass, PMC, and cone firings, plus 25 programmable user settings to fit your specific needs.

IMPORTANT: READ BEFORE ORDERING

Selecting Your Remote: Choose the correct amperage, voltage, and receptacle (NEMA number) from the dropdown above.

If unsure, do not order. Instead, email a photo of your kiln to jenkenkilns@gmail.com or call us at (863) 648-0585 during business hours (Tuesday–Friday, 8 AM–4 PM).

Your kiln’s amperage must be lower than the controller’s amperage.

Not compatible with auto turn-up devices—works only with manual kilns that require hand adjustments.

We offer special order remotes to fit unique needs.

📌 Note: Remotes are made to order and subject to a 20% restocking fee if returned. Most Remotes use Mechanical Relays.

HELPFUL HINTS

If you’d like us to customize your preprograms to suit your studio’s specific needs, just give us a call!

Centered Table with Heading

PRODUCT SPECIFICATIONS

Kiln Model AF3C 15/13 “The Emerge”
Interior Dimensions 15” x 13”
Cubic Feet 1.4ft³
Top/Side Firing Side
Max Temp 2,300°F
Voltage 240V
Amperage 22A
Watts 5,280W
Receptacle 6-30R
Breaker 30A
Circuit Wire Gauge 10
Overall Dimensions (Footprint & Height) 30” x 30” x 12”
Kiln Weight 100lbs
Shipping Weight (Average) 160lbs
Shipping Dimensions 32” x 32” x 41”
Shipping Method Motor freight - call for quote
