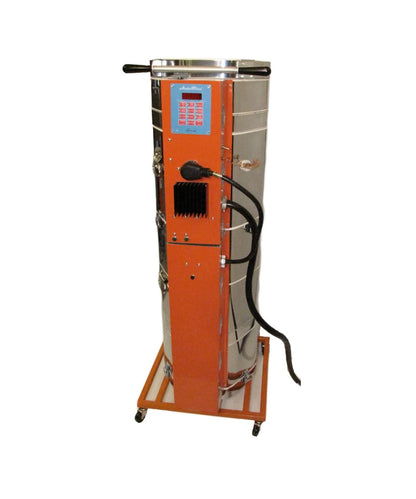

• Jen-Ken Kilns Vertical Air Bath Excalibur knife kiln closed

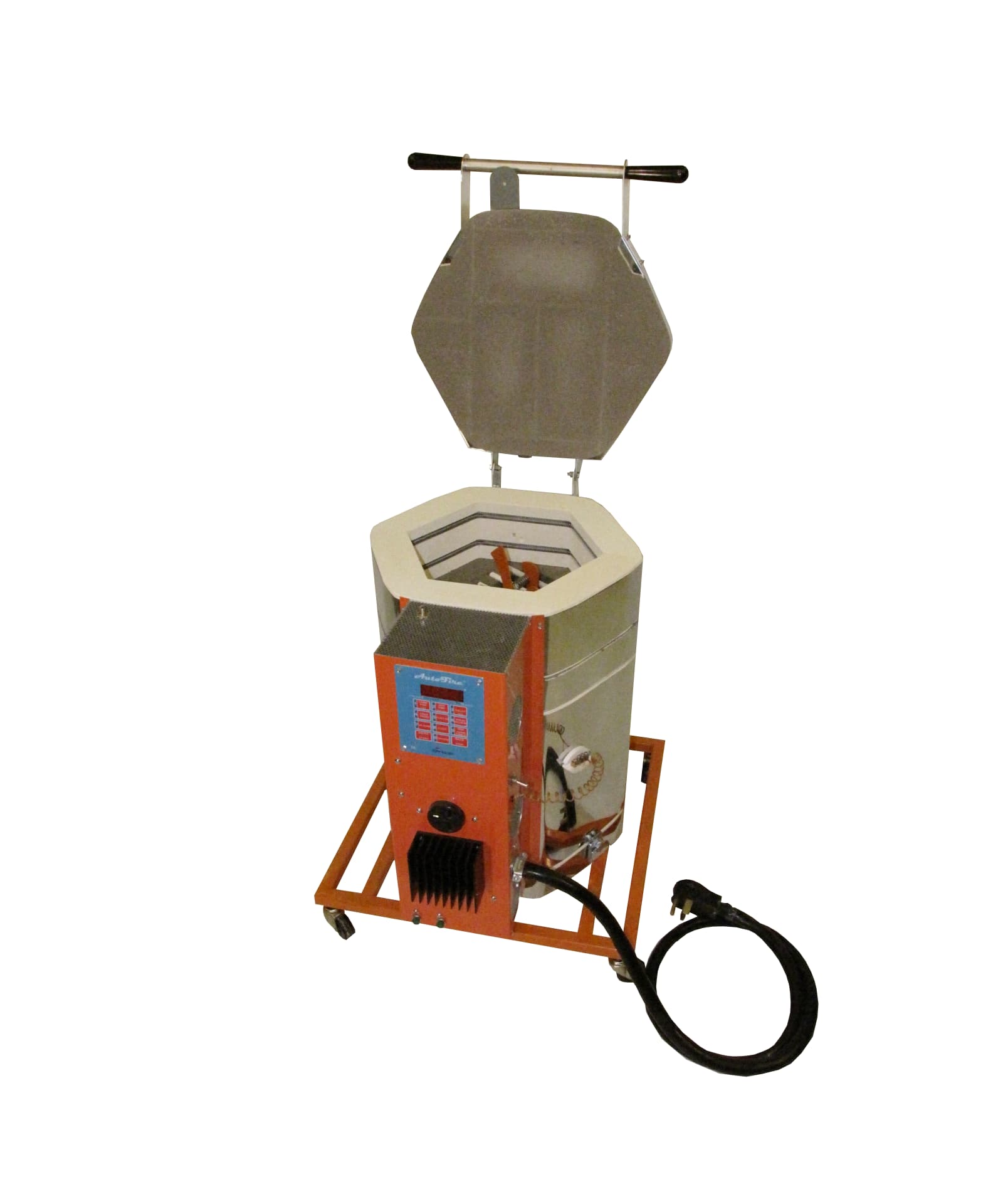

  • Jen-Ken Kilns Vertical Air Bath Excalibur top section open
  • Jen-Ken Kilns man loading a Vertical Air Bath knife kiln
  • Jen-Ken Kilns man unloading a Vertical Air Bath knife kiln with glowing blade
1 4

Vertical Air Bath Excalibur Knife Kiln

Vertical Air Bath Excalibur Knife Kiln

$3,888.00 USD
$3,888.00 USD
Sale Sold out
Shipping calculated at checkout.

The patent-pending Vertical Air Bath Excalibur furnace is a custom Vertical Air Bath that can heat treat shorter blades and swords. The removable Excalibur section, when clamped in, extends the oven’s height to 50 inches. This requires a workspace with tall ceilings, a tall vertical quench tank, and a platform for the bladesmith to stand on to retrieve and transfer blades to their quench medium of choice (platform and quench tank not included).

The configurable baffle design and large chamber accommodate blades of all shapes and sizes, making the Vertical Air Bath an ideal choice for diverse heat-treating needs.

Learn more about the Vertical Air Bath Excalibur and purchase knife kilns and accessories on our dedicated knife kiln site, KnifeKilns.com!
View full details

kin name

PRODUCT DESCRIPTION

ABOUT

Coming soon!

KEY FEATURES

Coming soon!

WHAT'S INCLUDED

Coming soon!

  • 2-Year Limited Warranty for Kiln and Controller

HELPFUL HINTS

Coming soon!

WARRANTY

2-year limited warranty for kiln and controller included.

BEFORE YOU PURCHASE

Before purchasing any Jen-Ken Kiln, we recommend that you give us a call at (800) 329-KILN to discuss your unique needs, studio setup, and electric requirements, ensuring you order the right kiln with confidence.

Centered Table with Heading

PRODUCT SPECIFICATIONS

Kiln Model AF3C 15/13 “The Emerge”
Interior Dimensions 15” x 13”
Cubic Feet 1.4ft³
Top/Side Firing Side
Max Temp 2,300°F
Voltage 240V
Amperage 22A
Watts 5,280W
Receptacle 6-30R
Breaker 30A
Circuit Wire Gauge 10
Overall Dimensions (Footprint & Height) 30” x 30” x 12”
Kiln Weight 100lbs
Shipping Weight (Average) 160lbs
Shipping Dimensions 32” x 32” x 41”
Shipping Method Motor freight - call for quote
